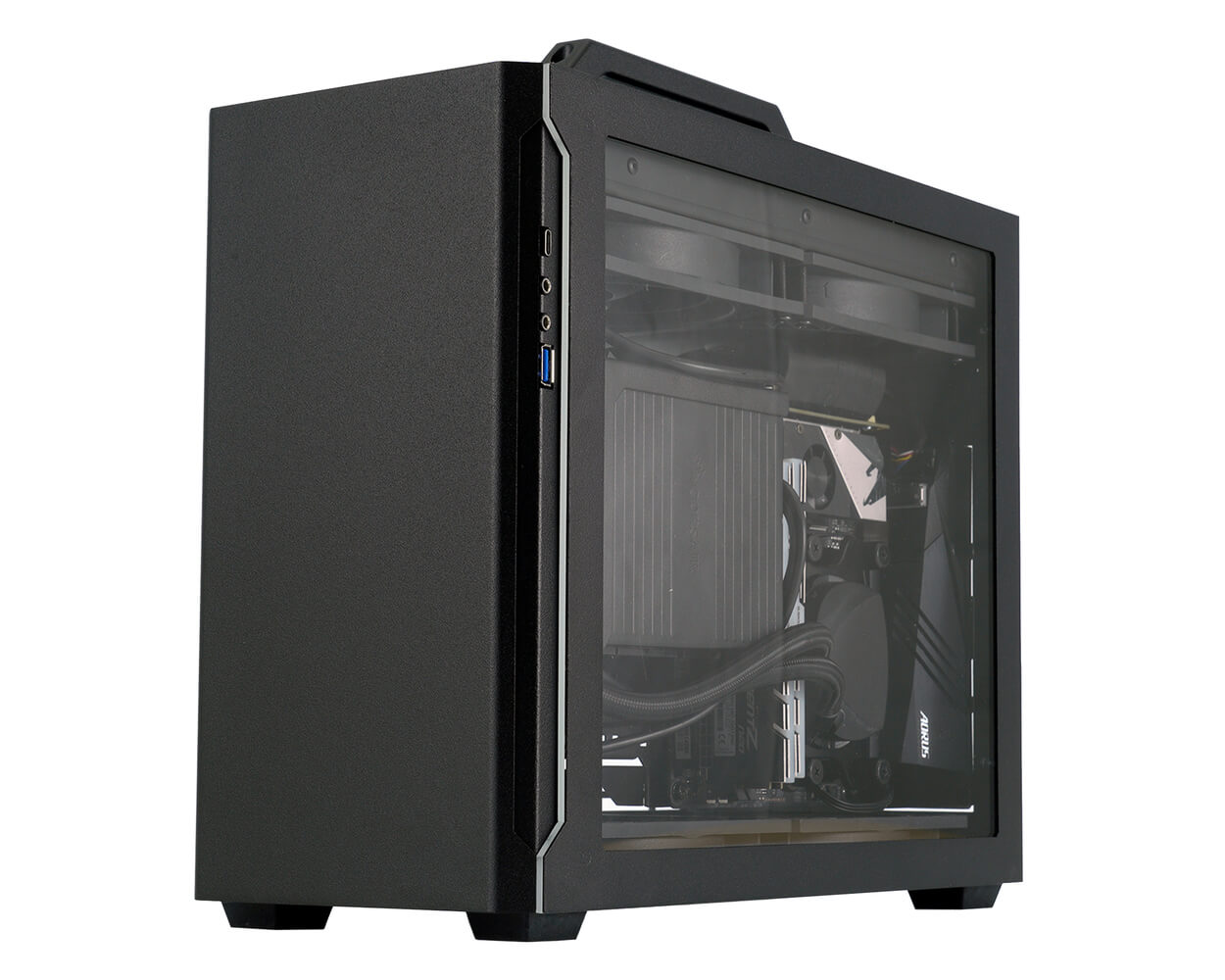

Sliger SM580 | Mini-ITX PC Case for 280mm AIOs and 3-slot GPUs

Specifications

Motherboard supportMini-ITX (170x170mm)
CPU Liquid CoolingMaximum of 55mm tall CPU pump blocks (height limit includes tubing – CPU blocks with tubes on sides are recommended)

1x 280mm, or 1x 240mm, or 2x 120mm, or 1x 120mm and 1x 140mm AIO radiator on top

Maximum radiator size328mm x 150mm x 72mm (LxWxH — 72mm height includes fan and radiator thickness.

Radiators with square radiator design (i.e. Corsair H100i/H115i Pro/Platinum series) are not recommended due to clearance issues.

Click here for full AIO Compatibility Spreadsheet [Google Docs]

DISCLAIMER: The compatibility spreadsheet is created and maintained by the Reddit community. Density Labs s.r.o. is not liable for any possible errors or inconsistencies in the spreadsheet.

CPU Air Coolersup to 55mm tall CPU coolers
Fan Mounting2x 140mm fans in bottom

2x 140mm fans on top

GPU / PCIe CardsMaximum 3-slot PCIe expansion cards

with Standard PSU cover
– max. card height: 133mm (157mm for power connectors)
– max. card length: 328mm
– max. card width: 3-slot, less than 67mm thick

with Pigtail PSU cover
– max. card height: 157mm
– max. card length: 328mm
– max. card width: 3-slot, less than 67mm thick

NOTE: Included riser cables is a PCIe Gen3 version – please make sure to set your motherboard BIOS to Gen3 speed for better compatibility.

Storagedual 2.5″ SSD/HDD mounting points behind front panel
Optional quad 2.5″ SSD/HDD mount bracket (each replaces 1x 140mm bottom fan – maximum 2x brackets)
Optional fan/HDD mount bracket (each replaces 1x 140mm bottom fan – maximum 2x brackets)
Optional dual 3.5″ HDD mount bracket (each replaces 1x 140mm top fan – maximum 2x brackets)
Power SupplySFX (SFX-L supported but not recommended because of size)
Front Panel I/Ooptional:
– 1x USB 3.1 Gen 2 Type C to USB E header (SS+ 10 Gbit/s) + 1x USB 3.0 Type A to 19-Pin Motherboard Header + 2x Audio Jacks to 9-Pin HD AUDIO header
or
– 1x USB 3.0 Type C and 1x USB 3.0 Type A to 19-Pin Motherboard Header + 2x Audio Jacks to 9-Pin HD AUDIO header
Material and Finishgalvanized steel, aluminium, rubber feet
Case Dimensions (LxWxH)357mm x 155mm x 287mm
Rev Control08.07.2019 – SM570-A Initial release

01.01.2020 – SM580-B Removed rear vent pattern and external water-cooling ports.

Scope of deliveryComputer case, 1x selected riser cable with mounting bracket, mounting hardware, black SBR case feet, internal PSU cable with selected PSU cover, optional accessories as per customer’s order
Documents and build recommendations

Data Sheet ENGLISH V1.2

Product manual

SM580 Build Guide ENGLISH

ASETEK 92mm AIO build guide

AIO GUIDE ENGLISH

More details can be found on manufacturer’s website.

Small Form Factor computer cases from Sliger Designs are in general built individually for each customer. The standard processing time of 3-6 weeks includes manufacturing, import into the Europe including customs clearances and preparing the order to be shipped to the customer from our EU based warehouse. However if all required parts are available (marked as “IN STOCK” during cart/checkout) in our EU warehouse, then the order is assembled locally and shipped within 1-3 business days.Each customer will receive a tracking ID upon shipment of his/hers order. More information can be found on our Shipping page.
