Description

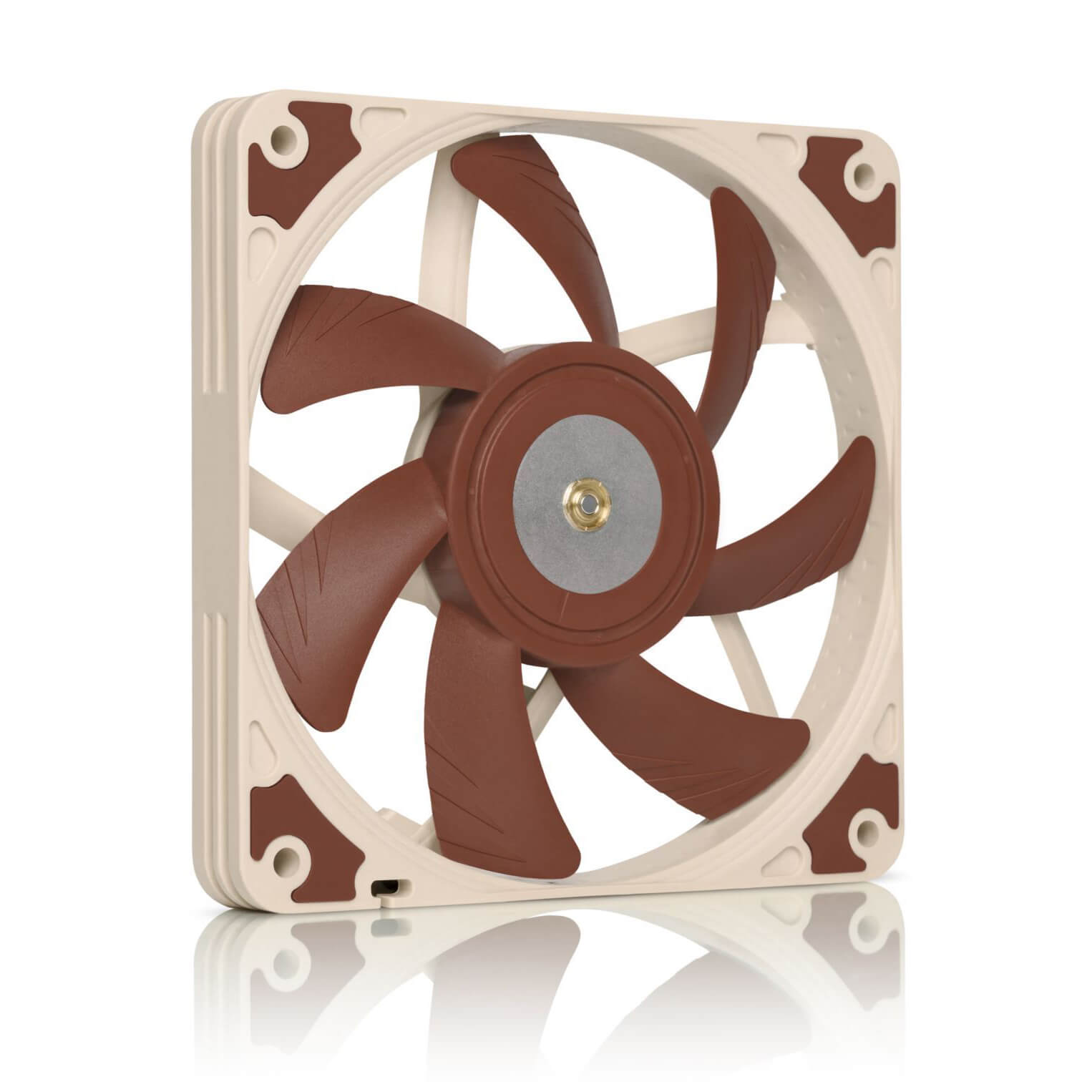

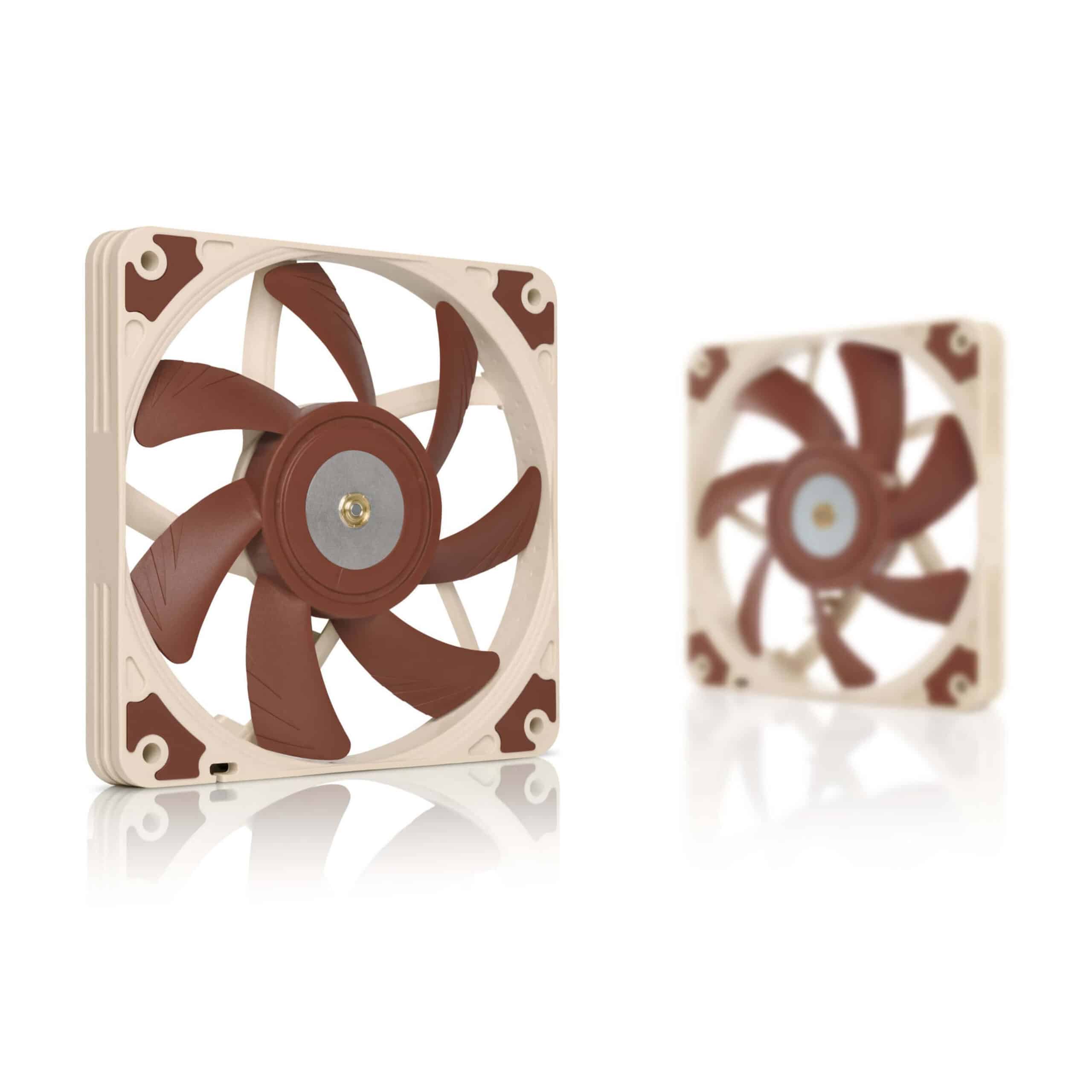

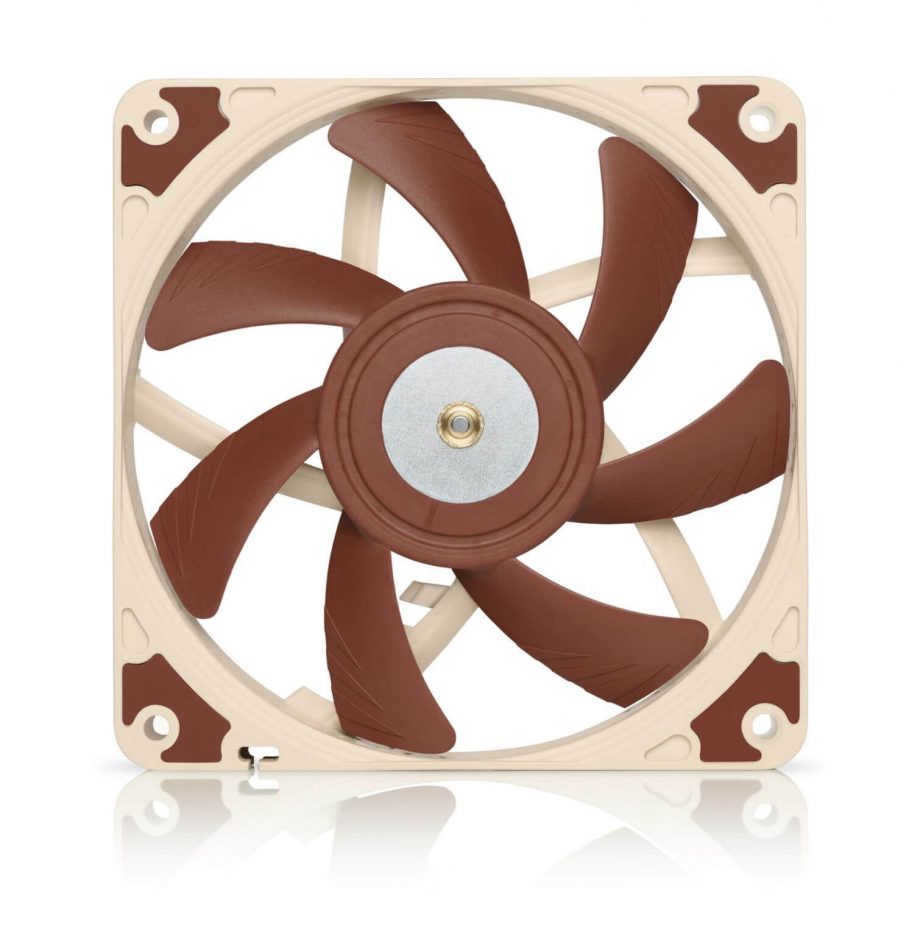

The NF-A12x15 PWM is NOCTUA’s award-winning slim 120mm fan. With only 15mm thickness it is most suited for space restricted PC cases and other SFF/HTPC applications. It supports fully automatic speed control via 4-pin fan headers and comes with a Low-Noise Adapter to reduce the maximum speed during PWM control from 1850 to 1400rpm.

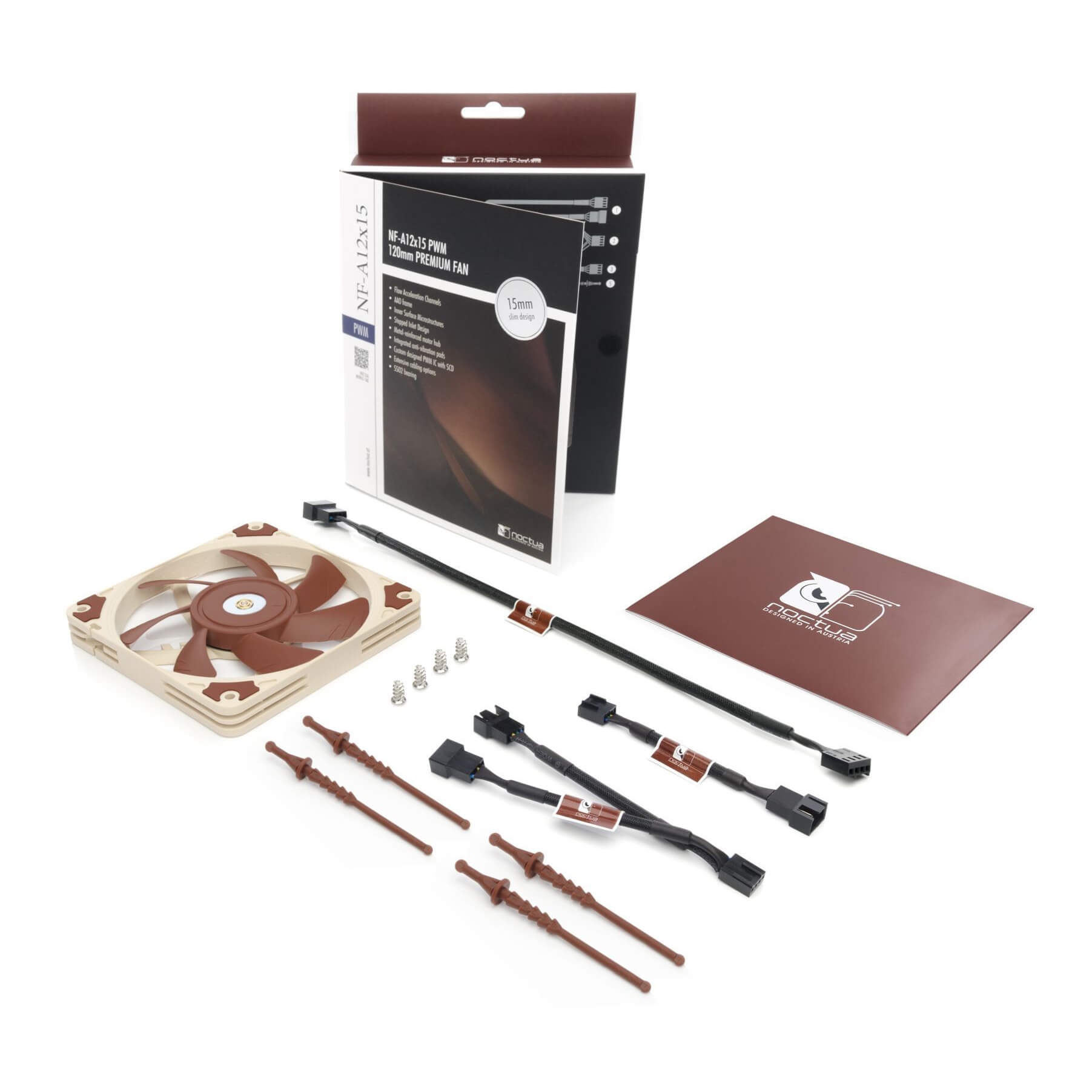

Package Content:
Low-Noise Adapter (L.N.A.), 4-pin y-cable, 30cm extension cable, NA-AV3 anti-vibration mounts, Fan screws
Specifications
| Size | 120x120x15 mm |
| Connector | 4-pin PWM |
| Bearing | SSO2 |
| Speed (+/- 10%) | 1850 RPM |
| Min. speed (PWM, +/-20%) | 450 RPM |
| Airflow | 94,2 m³/h |
| Acoustical noise | 23,9 dB(A) |
| Static pressure | 1,53 mm H₂O |
| Max. input power | 1,56 W |
| Max. input current | 0,13 A |
| Operating voltage | 12 V |
| MTTF | > 150.000 h |
More details can be found on manufacturer’s website.
