Description

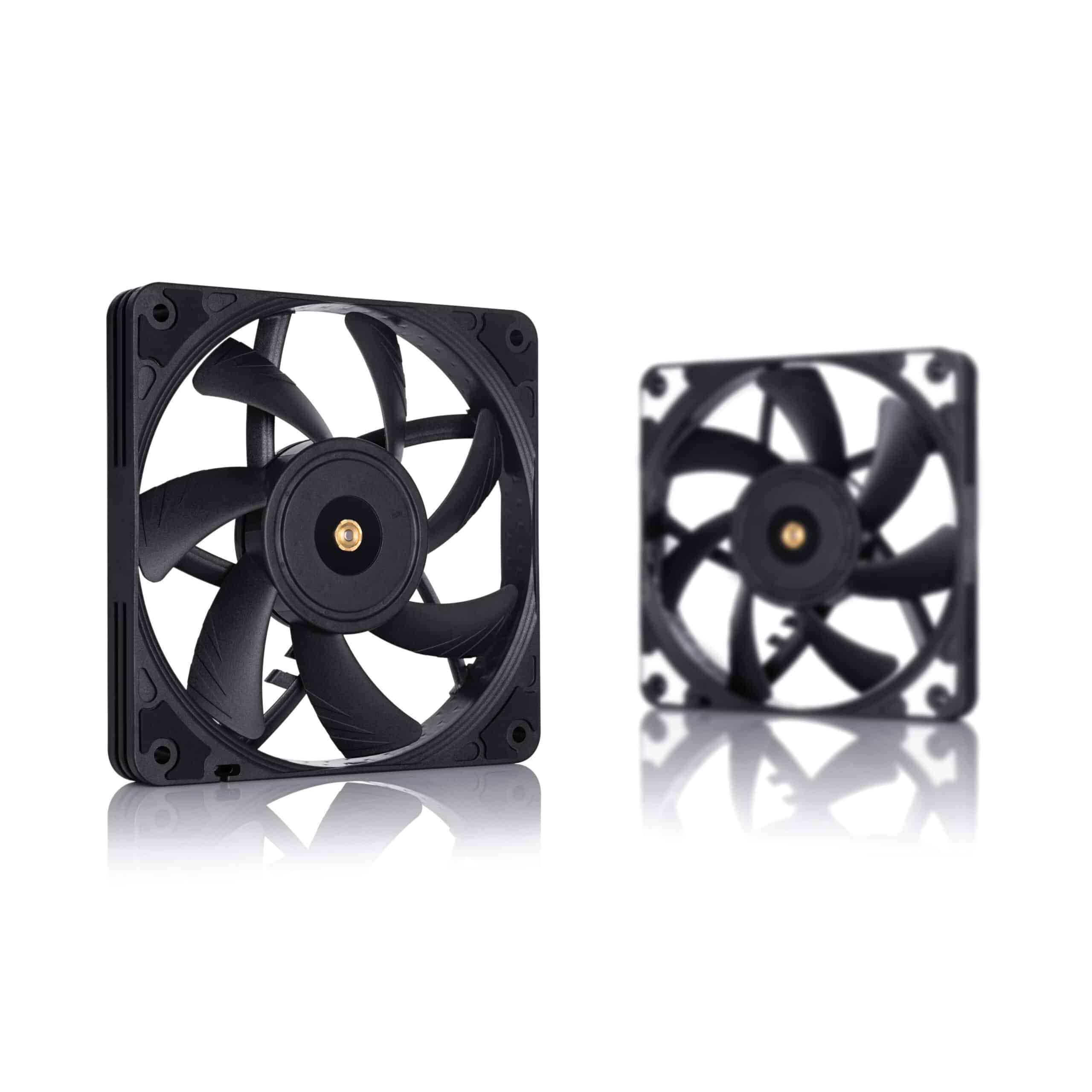

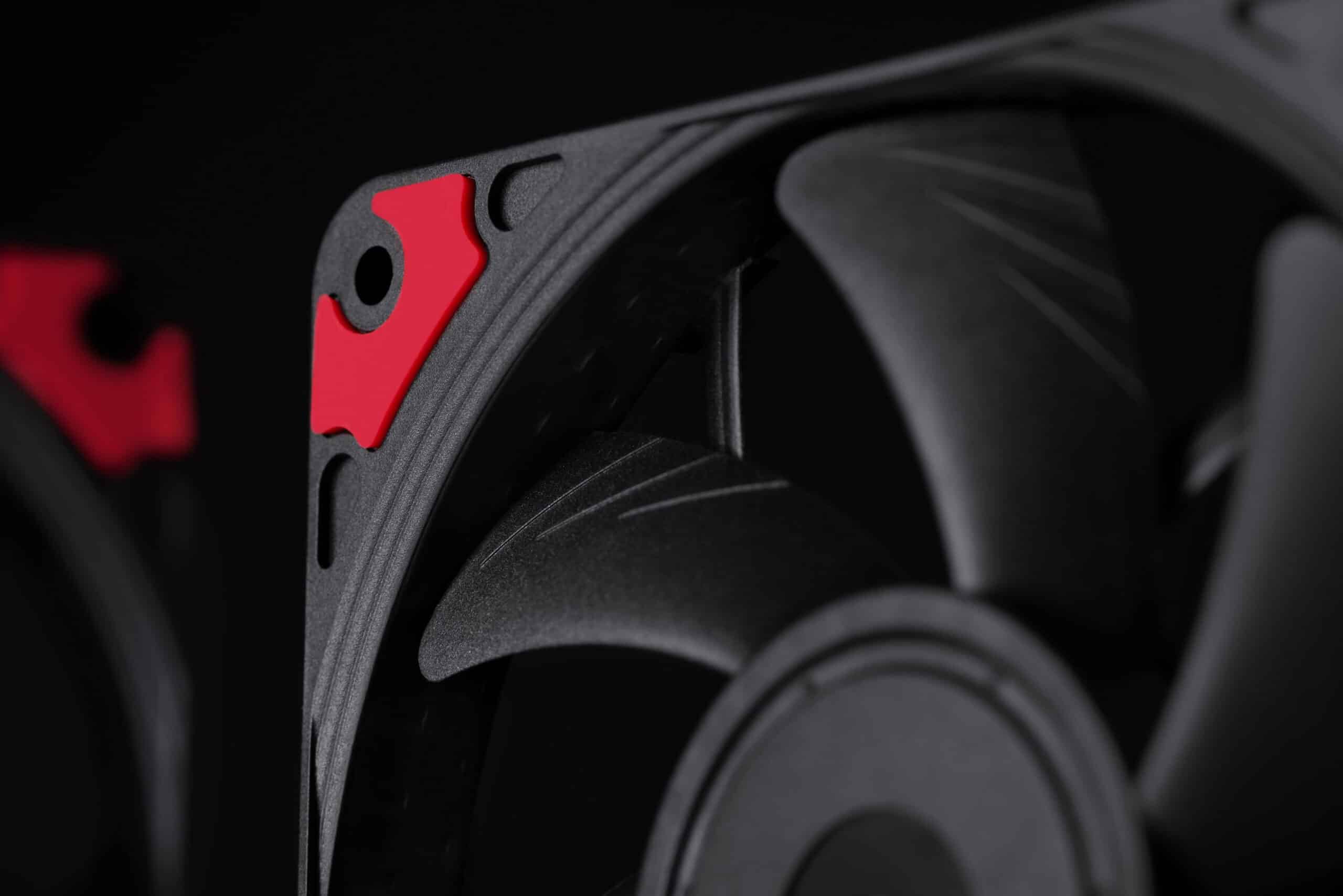

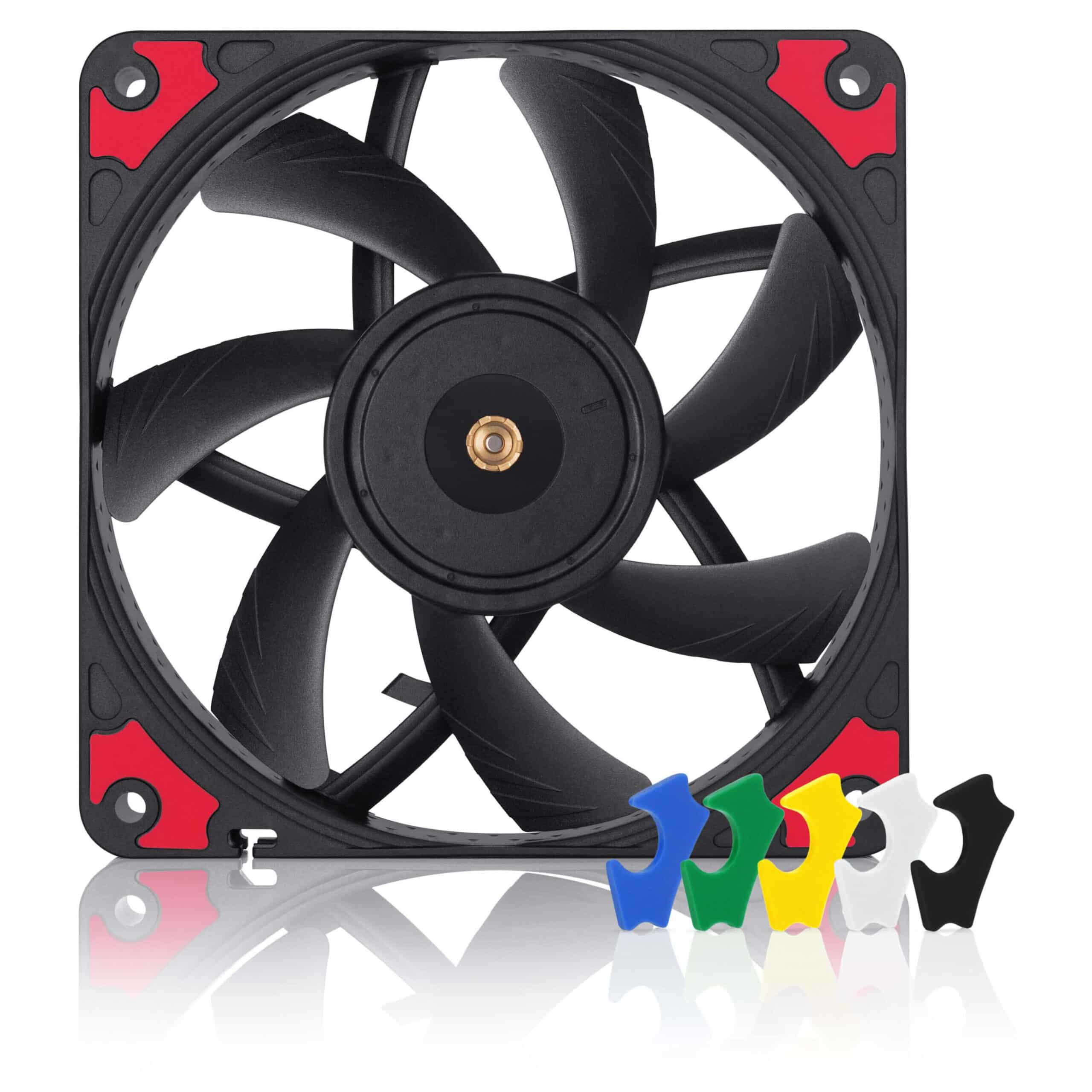

The NF-A12x15 PWM chromax.black.swap is NOCTUA’s award-winning slim 120mm fan. With only 15mm thickness it is most suited for space restricted PC cases and other SFF/HTPC applications. The chromax.black.swap edition combines the NF-A12x15’s signature quiet cooling performance with an attractive all-black design and a bundle of self-adhesive red, white, blue, green, yellow and black anti-vibration pads that allow the color-customization of the fan to match individual build color schemes. NF-A12x15 PWM Chromax.black.swap offers a fully automatic speed control via 4-pin PWM fan headers.

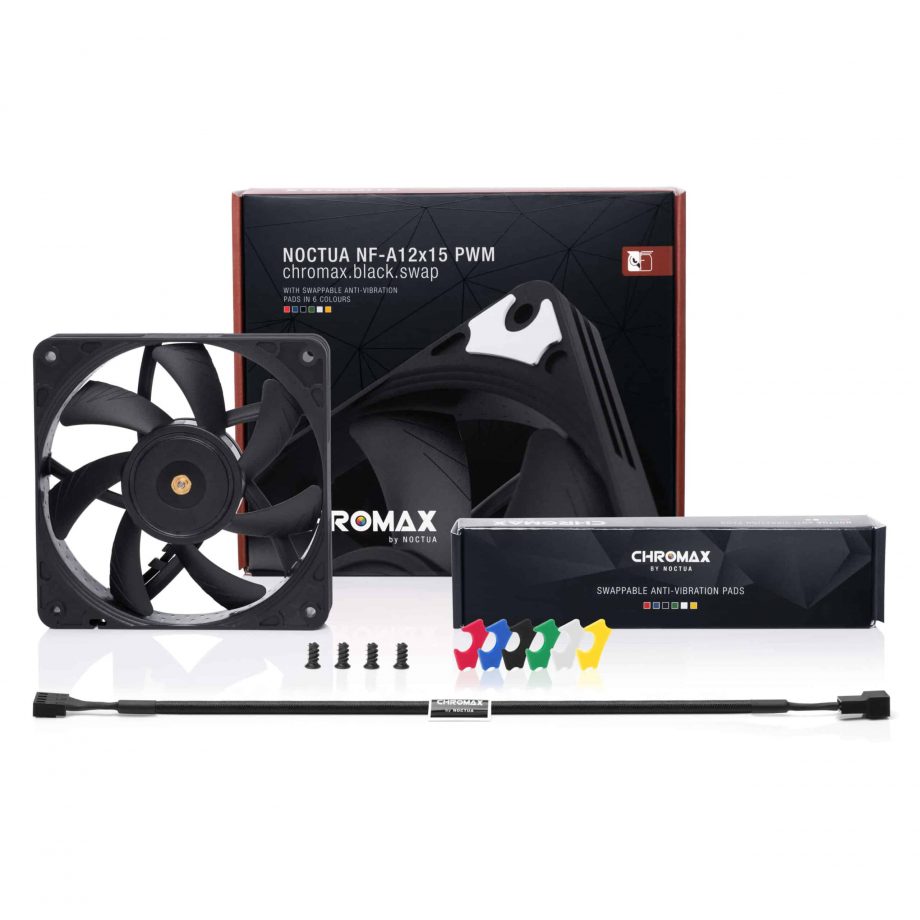

Package Content:

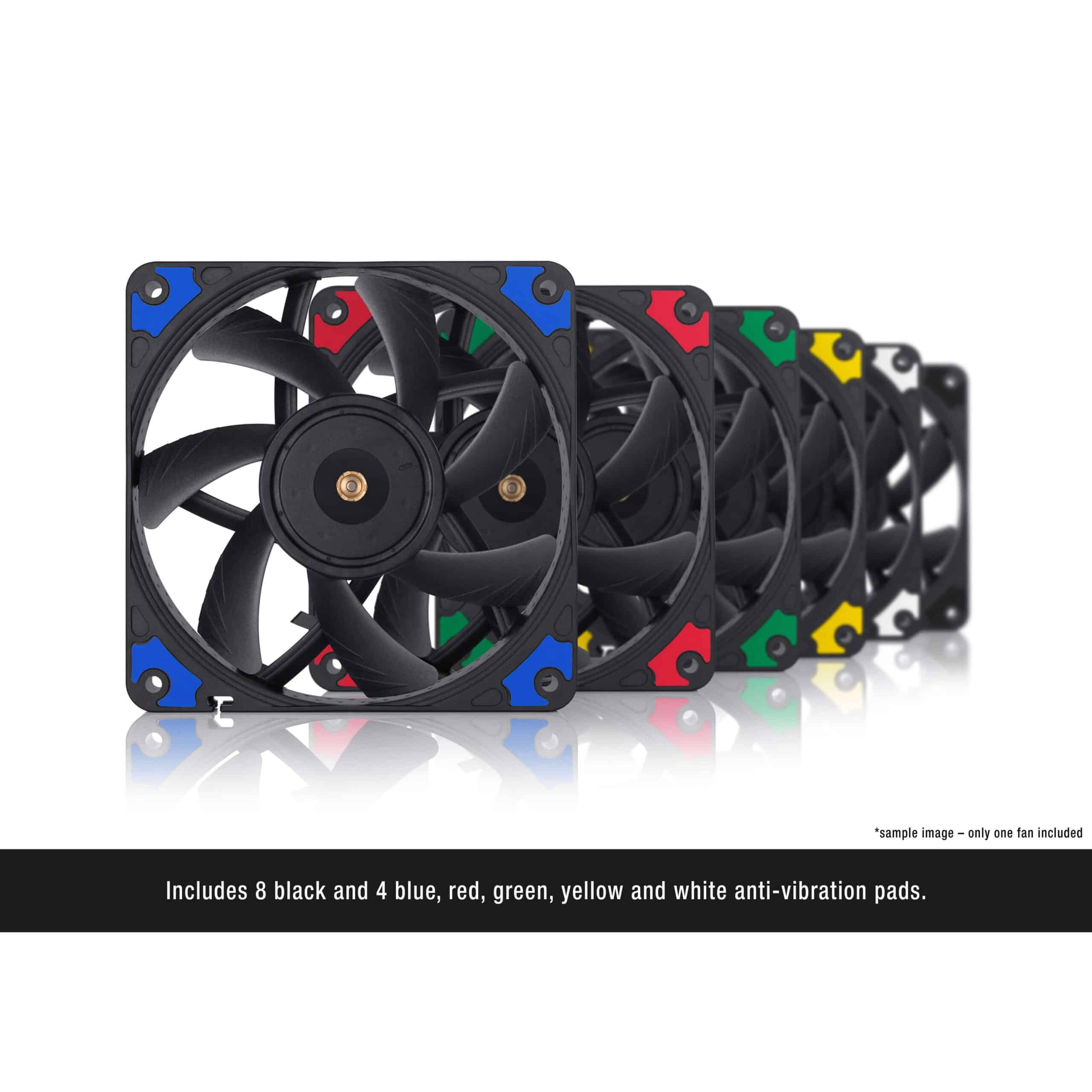

8x NA-AVP7 chromax.black anti-vibration pads, 8x NA-AVP7 chromax.blue anti-vibration pads,8 x NA-AVP7 chromax.green anti-vibration pads, 8x NA-AVP7 chromax.red anti-vibration pads, 8x NA-AVP7 chromax.white anti-vibration pads, 8x NA-AVP7 chromax.yellow anti-vibration pads, 4x fan screws
Specifications
| Size | 120x120x15 mm |
| Connector | 4-pin PWM |
| Bearing | SSO2 |
| Speed (+/- 10%) | 1850 RPM |
| Min. speed (PWM, +/-20%) | 450 RPM |
| Airflow | 94,2 m³/h |
| Acoustical noise | 23,9 dB(A) |
| Static pressure | 1,53 mm H₂O |
| Max. input power | 1,56 W |
| Max. input current | 0,13 A |
| Operating voltage | 12 V |
| MTTF | > 150.000 h |
More details can be found on manufacturer’s website.
