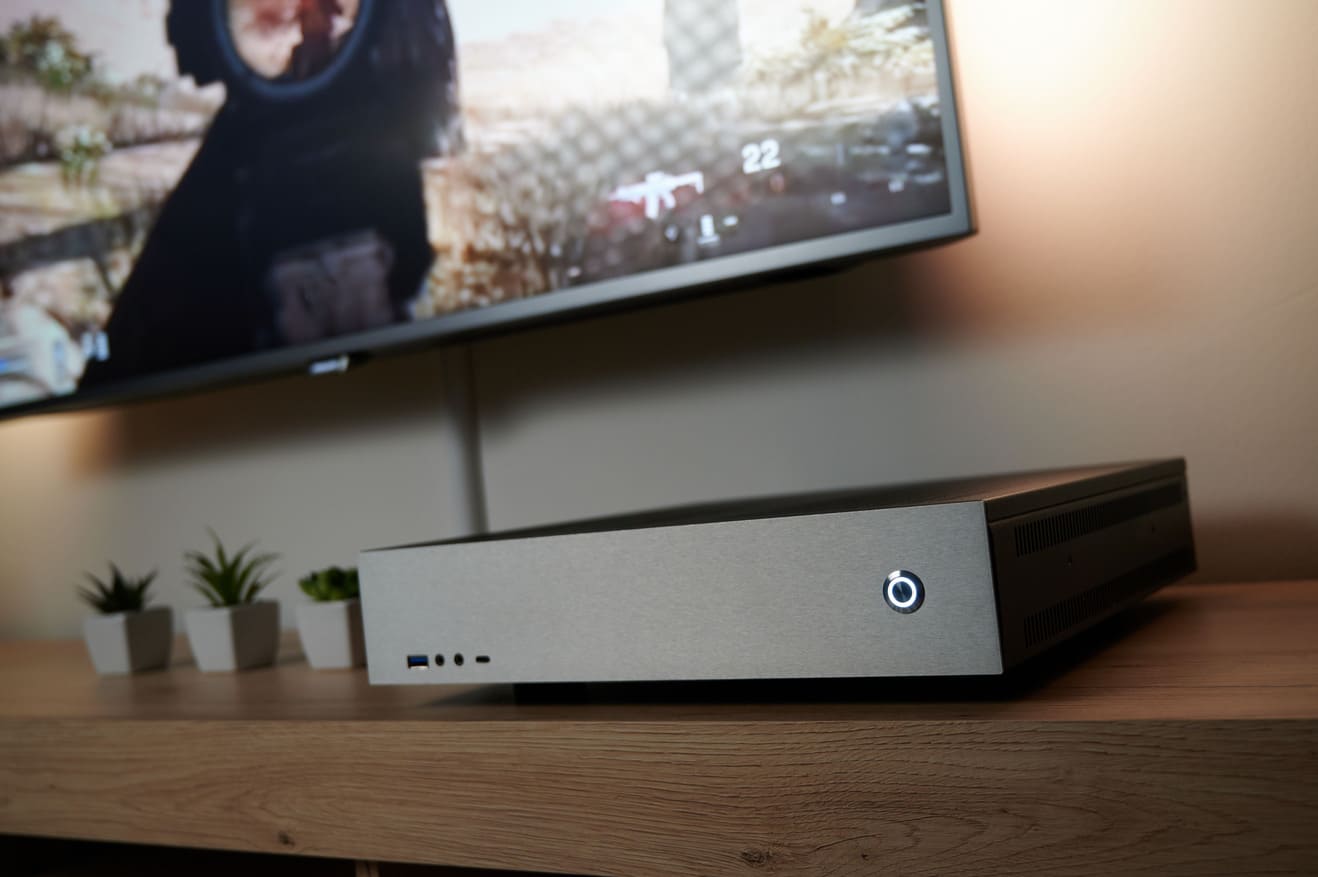

Sliger CL520 | 8.3L Console Style Mini-ITX PC Case

NOTES: The CL520 is designed specifically for use with 15mm slim 120mm fans (preferred high performance Noctua NF-A12x15 fans or equivalent). Using this case without fans might limit the performance of your system due to thermal limits of components. Using NO fans is recommended for systems with <300W total power. Fans are available separately depending on customer’s preferences.

*Only with “FPIO with a USB 3.1 Type E + 19-Pin Cable” – Type E USB header is usually present on Intel motherboards or higher end AMD motherboards.

Specifications

Motherboard supportMini-ITX (170x170mm)
CPU Liquid Coolingnot supported
CPU Air Coolersup to 53,40mm tall CPU coolers

Click here for full Compatibility Spreadsheet [Google Docs]

DISCLAIMER: The compatibility spreadsheet is created and maintained by the Reddit community. Density Labs s.r.o. is not liable for any possible errors or inconsistencies in the spreadsheet.

Fan Mounting2x 120mm x 15mm slim fans behind GPU as exhaust
GPU / PCIe CardsMaximum 2-slot PCIe expansion cards

with Standard PSU cover

– max. card height: 133mm
– max. card length: 324mm (<335mm with difficult positioning)
– max. card width: 2-slot, up to 40mm thick

with Pigtail PSU cover

– max. card height: 157mm
– max. card length: 324mm (<335mm with difficult positioning)
– max. card width: 2-slot, up to 40mm thick

Absolute height limit of 157mm including power connectors regardless of PSU cover used.

Bifurcated riser cable is not supported.

NOTE: Included riser cables is a PCIe Gen3 version – please make sure to set your motherboard BIOS to Gen3 speed for better compatibility.

Storagenot supported – recommended for use with onboard M.2 SSD devices
Power SupplySFX (SFX-L supported but not recommended because of size)
Front Panel I/Ooptional:
– no front panel I/O
or
– 1x USB 3.1 Gen 2 Type C to USB E header (SS+ 10 Gbit/s) + 1x USB 3.0 Type A to 19-Pin Motherboard Header + 2x Audio Jacks to 9-Pin HD AUDIO header
or
– 1x USB 3.0 Type C and 1x USB 3.0 Type A to 19-Pin Motherboard Header + 2x Audio Jacks to 9-Pin HD AUDIO header
Material and Finishgalvanized steel, grained aluminium front panel or fine black powder coated front panel, rubber feet
Case Dimensions (LxWxH)343mm x 346mm x 68mm
Rev Control16.03.2020 – CL520-A release
Scope of deliveryComputer case, PCIe 3.0 riser cable, mounting hardware, internal PSU cable with standard and pigtail PSU cable cover, power supply mounting bracket, power button, adhesive rubber case feet, optional accessories as per customer’s order
Documents and build recommendationsCL520 Data Sheet ENGLISH V1.1
Product manualCL520 Build Guide ENGLISH

More details can be found on manufacturer’s website.

Small Form Factor computer cases from Sliger Designs are in general built individually for each customer. The standard processing time of 3-6 weeks includes manufacturing, import into the Europe including customs clearances and preparing the order to be shipped to the customer from our EU based warehouse. However if all required parts are available (marked as “IN STOCK” during cart/checkout) in our EU warehouse, then the order is assembled locally and shipped within 1-3 business days.Each customer will receive a tracking ID upon shipment of his/hers order. More information can be found on our Shipping page.
