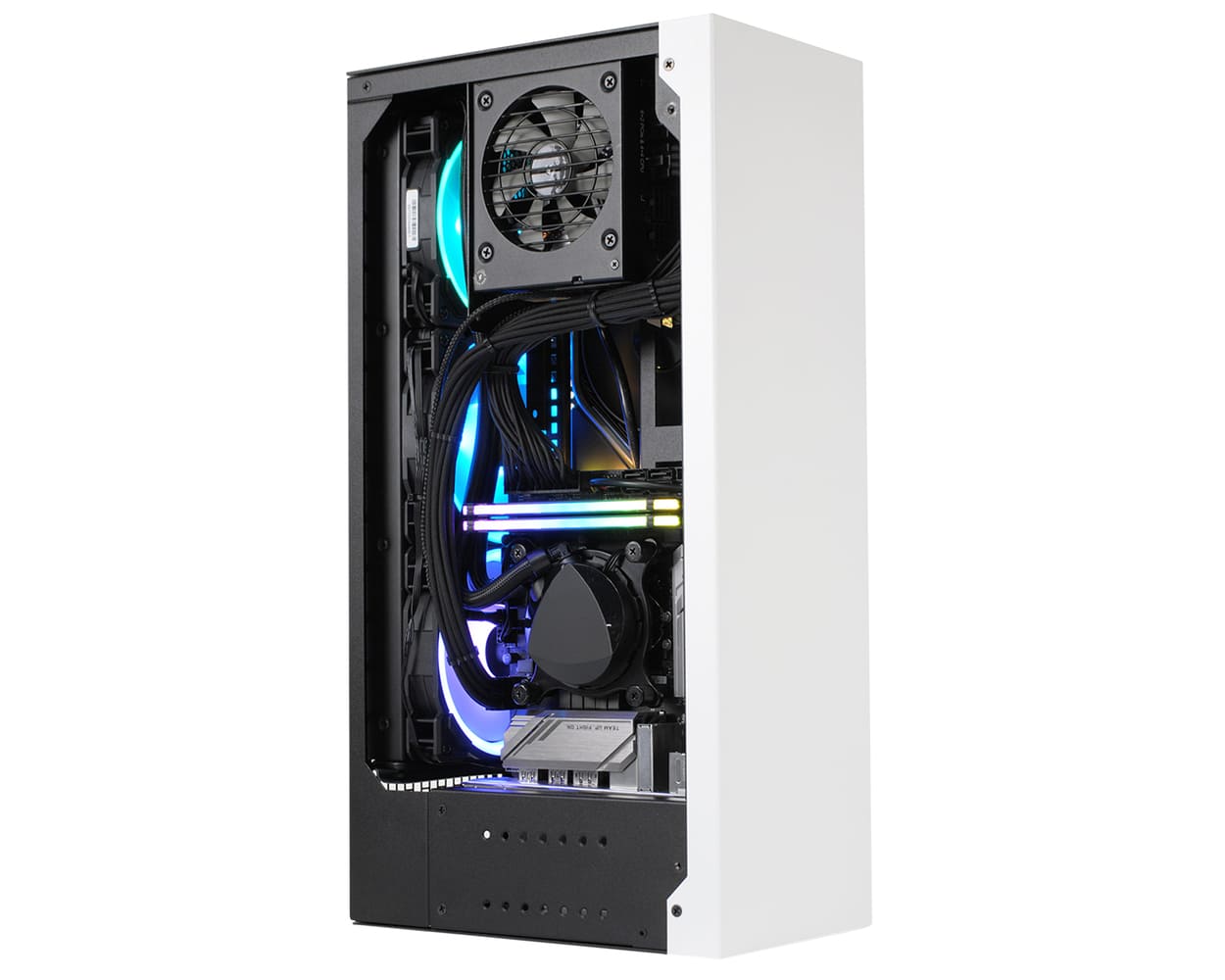

SV590 v2 | Vertical Mini-ITX PC Case for 360mm AIOs and 3-slot GPUs

Specifications

Motherboard supportMini-ITX (170x170mm)
CPU Liquid Cooling

Custom-loop radiator support:

Maximum Length: 430mm
Maximum Width: 149mm
Maximum Thickness: 66mm (maximum combined fan and radiator thickness)

ALL-IN-ONE (AIO) Liquid Coolers

1x 360mm radiator
or
1x 280mm radiator
or
1x 240mm + 1x 120mm radiator

Maximum of 53mm tall CPU pump blocks. Space in bottom of the case or between CPU and PSU for short pump/res combos.

Click here for full AIO Compatibility Spreadsheet [Google Docs]

DISCLAIMER: The compatibility spreadsheet is created and maintained by the Reddit community. Density Labs s.r.o. is not liable for any possible errors or inconsistencies in the spreadsheet.

CPU Air Coolersup to 53mm tall CPU coolers (Air cooling for CPU is not recommended)
Fan Mounting3x 120mm fans or 3x 140mm fans
GPU / PCIe CardsMaximum 3-slot PCIe expansion cards

– max. card height: 160mm
– max. card length: 390mm (290mm with 3.5″ HDD or 324mm with 2.5″ SSDs in case bottom)
– max. card width: 3-slot, less than 68mm thick

Bifurcation riser limits the outer PCIe 16x 3.0 card to 2-slots wide (47mm), and inner slot to a single slot card.

NOTE: Included riser cables is a PCIe Gen3 version – please make sure to set your motherboard BIOS to Gen3 speed for better compatibility.

Storage14X 2.5″ SSD/HDD mounting points on case frame behind front panel, back end of GPU and next to standard SFX mounting position
Optional 2x 3.5″ HDD mounting in bottom of case (restricts GPU length to 290mm, blocks 5x 2.5″ SSD mounting at bottom of the case)
Power SupplySFX or SFX-L

SFX-L in standard position is a very tight fit and not recommended. Alternative SFX-L PSU mounting is recommended (via an included bracket)

Front Panel I/Onot supported
Material and Finishgalvanized and cold rolled steel, rubber feet
Case Dimensions (WxDxH)154mm X 247mm X 472mm
Rev Control20.11.2020 – SV590V2 initial release
Scope of deliveryComputer case, 1x selected PCIe riser cable with mounting bracket, mounting hardware, internal PSU cable, DDC/PWM pump mounting bracket, optional accessories as per customer’s order
Documents and build recommendations

coming soon

Product manualSV590 Build Guide ENGLISH

More details can be found on manufacturer’s website.

* The default riser cable (single or bifurcated) is a PCIe 3.0 version. Set motherboard to Gen3 for full compatibility. Optional GEN 4 riser cables available in the configuration above.

Small Form Factor computer cases from Sliger Designs are in general built individually for each customer. The standard processing time of 3-6 weeks includes manufacturing, import into the Europe including customs clearances and preparing the order to be shipped to the customer from our EU based warehouse. However if all required parts are available (marked as “IN STOCK” during cart/checkout) in our EU warehouse, then the order is assembled locally and shipped within 1-3 business days.Each customer will receive a tracking ID upon shipment of his/hers order. More information can be found on our Shipping page.
