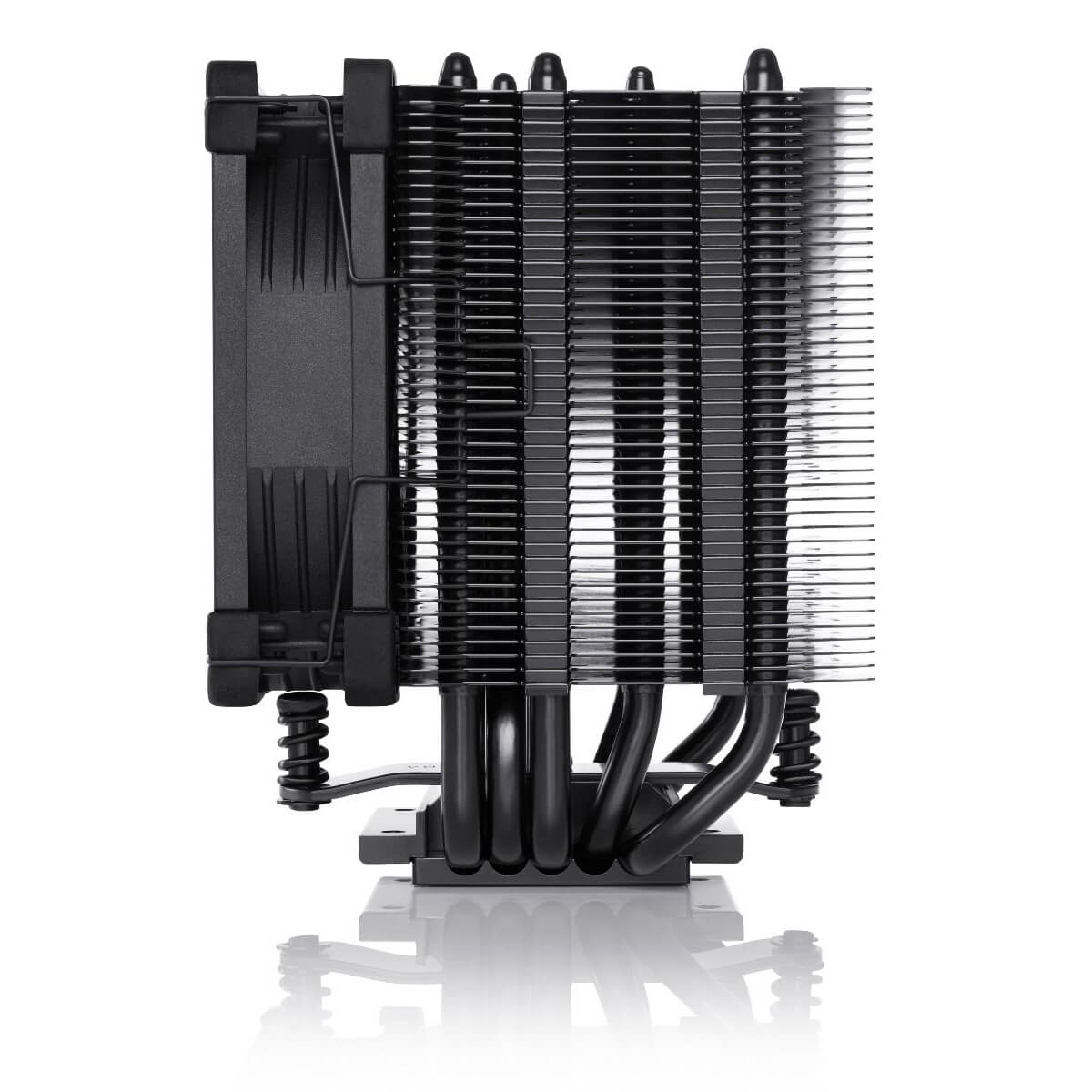

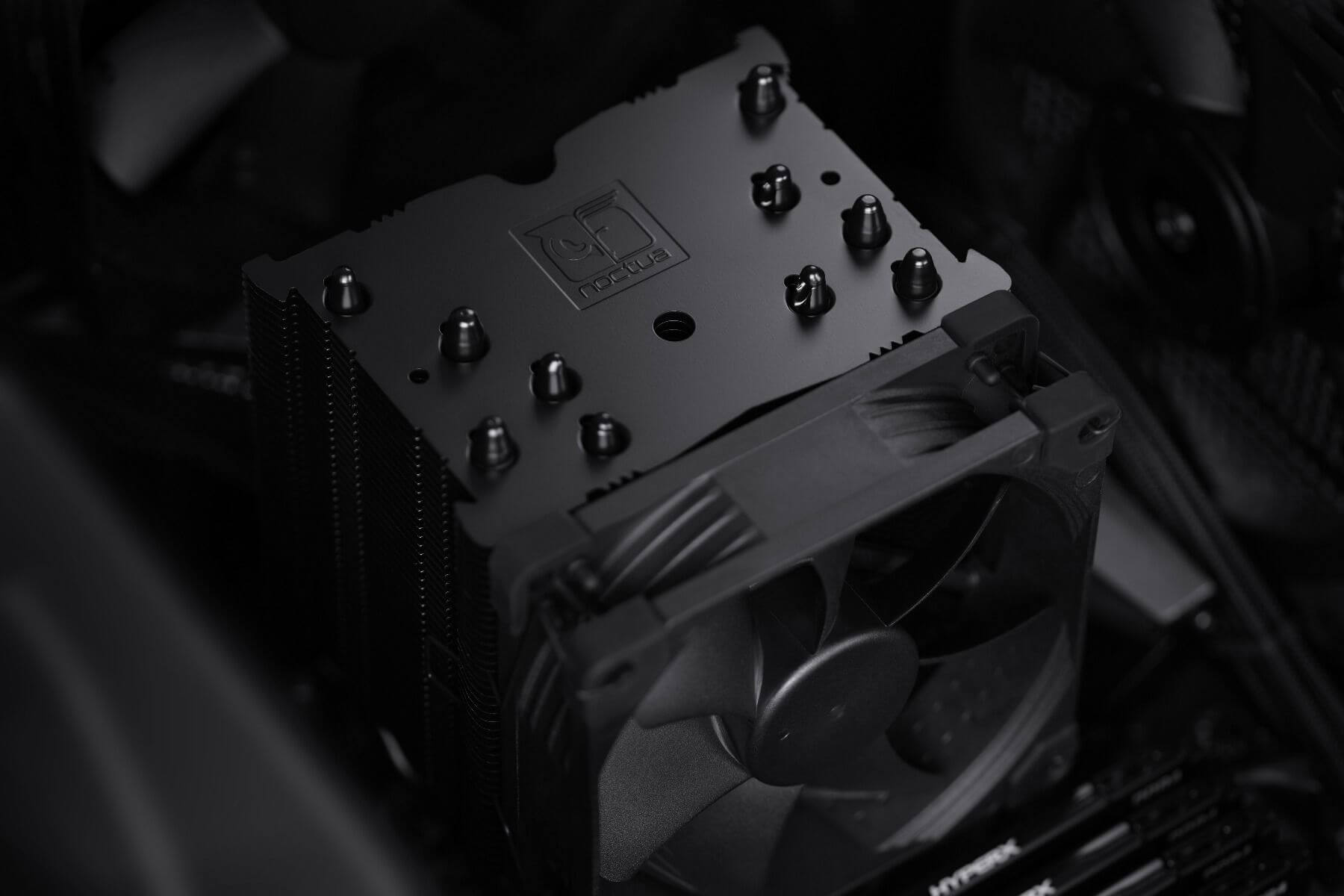

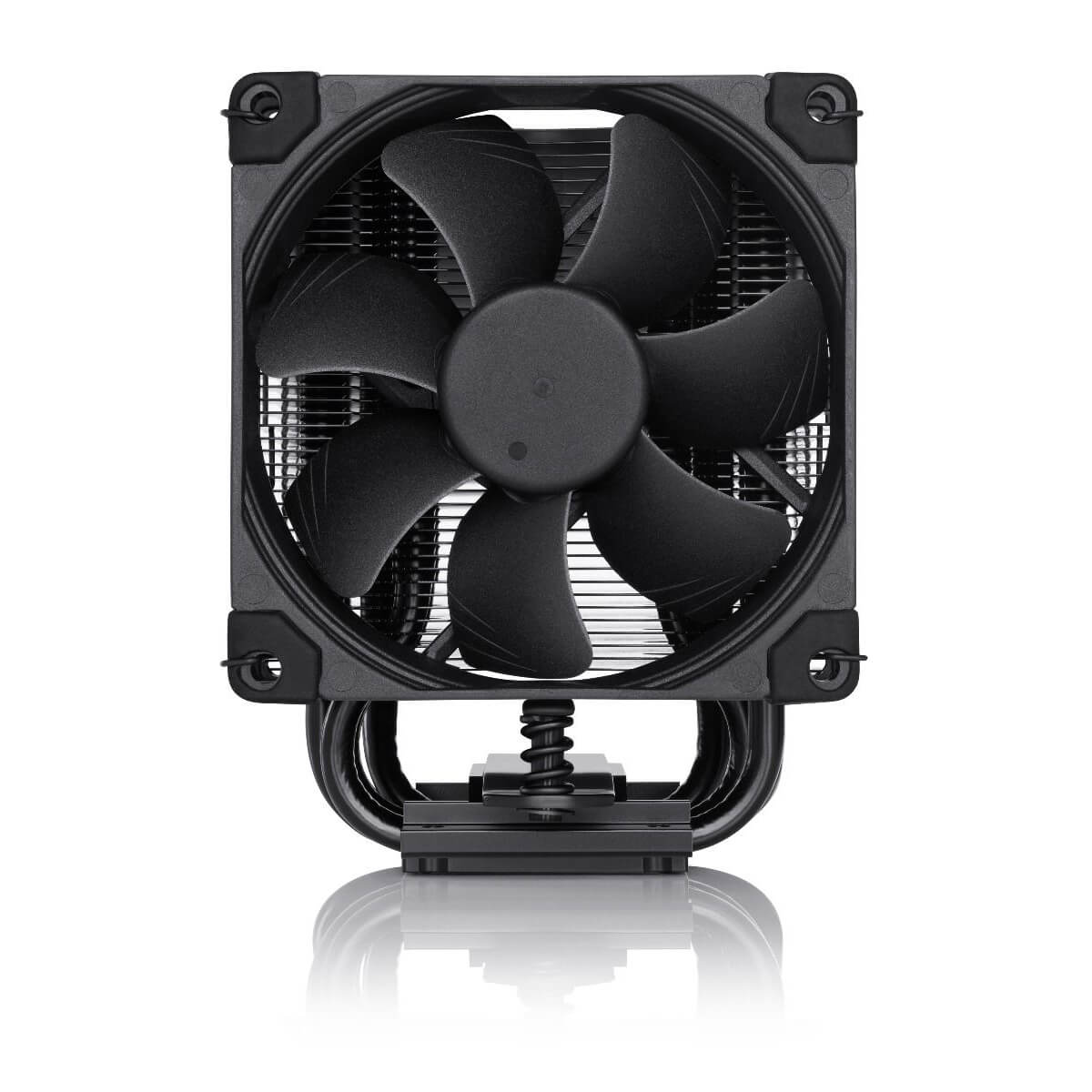

The NH-U9S chromax.black is a premium CPU cooler in a compact 9cm size. It stays true to the NH-U9S’s excellent cooling performance and compatibility. It clears RAM and PCIe slots on all Intel and most AMD motherboards, even on their ITX versions. With its 125mm height it is highly versatile and compatible with many PC cases. With its included NF-A9 fans with PWM automatic fan control it offers great cooling performance, quiet operation. In a dual-fan configuration it improves cooling performance even further.

Specifications

Socket compatibilityIntel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4 (included since 2019, older coolers require NM-AM4-UxS)
Size (HxWxD – no fan)125x95x68 mm
Size (HxWxD – with fan)125x95x95 mm
MaterialCopper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Fan compatibility92x92x25
Fan includedNoctua NF-A9 PWM chromax.black
Max. rotational speed (+/- 10%)2000 RPM
Min. rotational speed (PWM, +/-20%)400 RPM
Max. airflow78,9  m³/h
Max. acoustical noise22,8 dB(A)

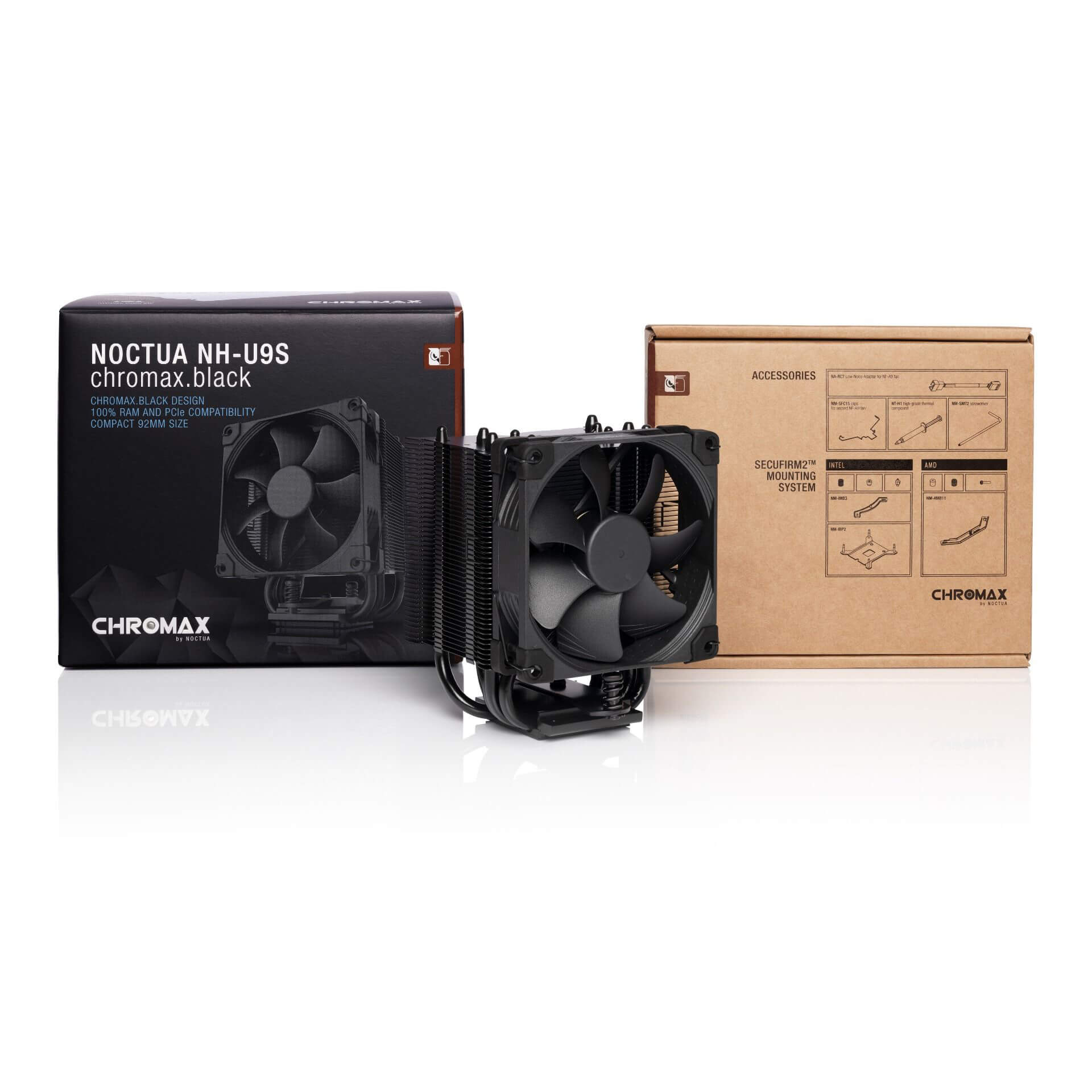

Package ContentNF-A9 PWM chromax.black premium fan, Low-Noise Adapter (L.N.A.), NT-H1 high-grade thermal compound, SecuFirm2™ Mounting Kit, Fan-clips for second NF-A9, Noctua Metal Case-Badge

More details can be found on manufacturer’s website.

Weight1.23 kg
Dimensions9.68 × 9.5 × 12.5 cm
Intel’s new 12th generation Core processors (Core i9-12900K(F), Core i7-12700K(F), Core i5-12600K(F), etc.) are based on the entirely new LGA1700 socket. Due to its different mounting hole pattern and stack-up height (height of the CPU and socket combined), LGA1700 requires a new mounting mechanism for CPU coolers.Noctua is in the process of updating most of their multi-socket CPU cooler models to include LGA1700 mounting hardware. Please see their ‘timeline of Noctua coolers to include LGA1700 mounting hardware’ to check which model will be updated when, and this FAQ for how to verify if your cooler already includes LGA1700 mounting hardware.For coolers that do not yet include LGA1700 mounting hardware, Noctua offers a direct free-of-charge mounting-upgrade kits (NM-i17xx-MP83 for coolers with 83mm mounting pitch and NM-i17xx-MP78 for coolers with 78mm mounting pitch). Please see this FAQ to check which kit is required for your cooler.A proof of purchase of both an eligible Noctua CPU cooler (i.e. DENSITY.sk invoice) and either an LGA1700 CPU or an LGA1700 motherboard is required for ordering the kits free of charge via Noctua's website.More information can be found on Noctua's website HERE.
