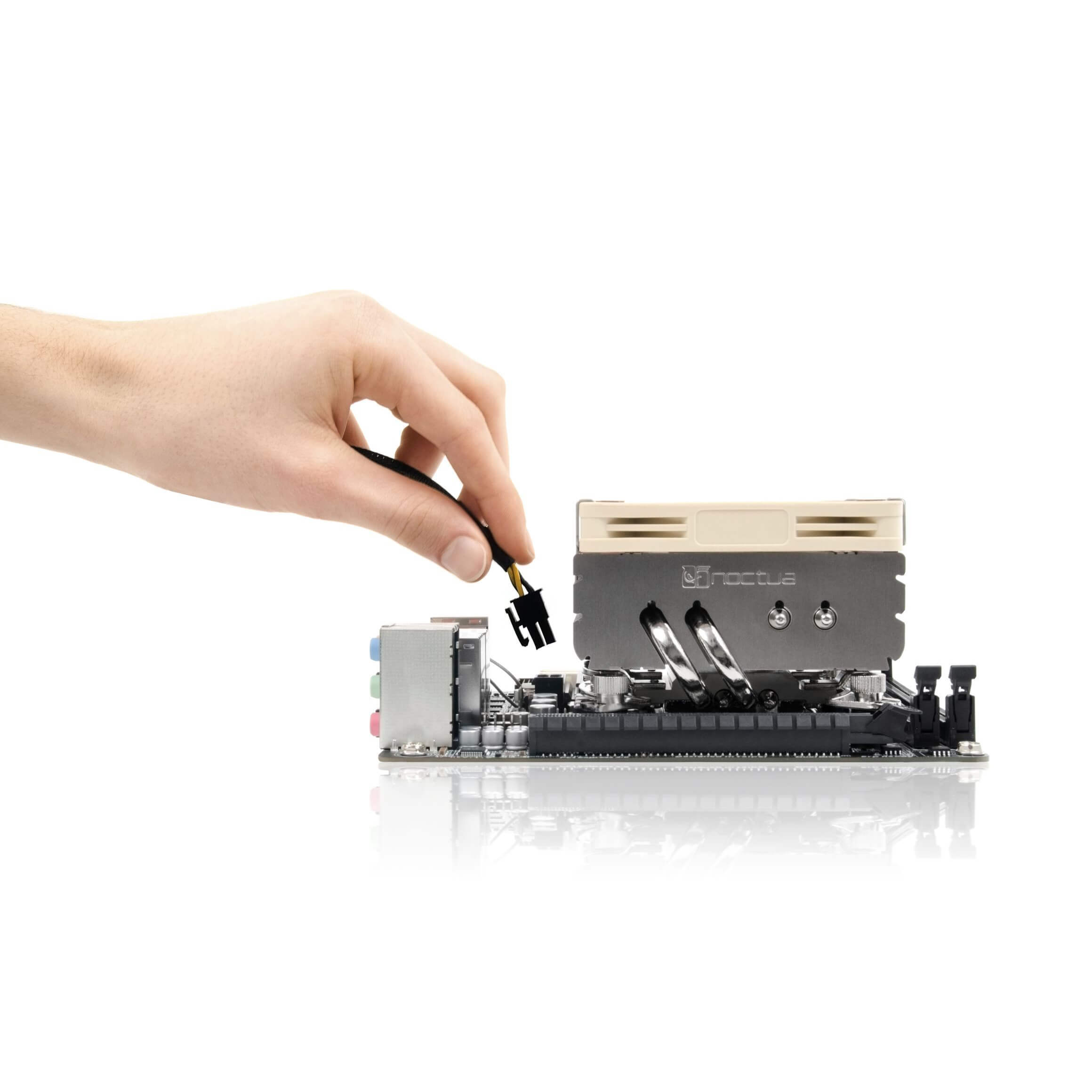

The NH-L9x65 is tall, performance-enhanced version of NOCTUA’s low-profile NH-L9 CPU coolers. With 65mm height with 4 heat pipes and narrow design it has better cooling performance compared to its slim siblings and clears 100% RAM and PCIe sockets. It also allows easy access to near-socket connectors even on Mini-ITX motherboards. With its NF-A9x14 92mm fan with PWM control it is whisper-quiet. In addition with NOCTUA’s NT-H1 thermal compound it is the best choice for small ITX systems with AMD or Intel CPUs.

NOTE: The NH-L9x65 is a highly-compact low-profile quiet cooler designed for use in small form factor cases and HTPC environments. While it provides first rate performance in its class, it is not suitable for overclocking and should be used with care on CPUs with more than 84W TDP (Thermal Design Power). Please consult manufacturer’s CPU compatibility list and TDP guidelines to find out whether the NH-L9x65 is recommended for your CPU.

Specifications

Socket compatibilityIntel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4 (included since 2019, older coolers require NM-AM4)
Size (HxWxD – no fan)51x95x95 mm
Size (HxWxD – with fan)65x95x95 mm
MaterialCopper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Fan compatibility92x92x14, 92x92x25
Fan includedNoctua NF-A9x14 PWM
Max. rotational speed (+/- 10%)2500 RPM
Min. rotational speed (PWM, +/-20%)600 RPM
Max. airflow57,5  m³/h
Max. acoustical noise23,6 dB(A)
Package ContentNF-A9x14 PWM premium fan, Low-Noise Adapter (L.N.A.), NT-H1 high-grade thermal compound, SecuFirm2™ Mounting Kit, Noctua Metal Case-Badge

More details can be found on manufacturer’s website.

Weight0.8 kg
Dimensions9.5 × 9.5 × 5.1 cm
Intel’s new 12th generation Core processors (Core i9-12900K(F), Core i7-12700K(F), Core i5-12600K(F), etc.) are based on the entirely new LGA1700 socket. Due to its different mounting hole pattern and stack-up height (height of the CPU and socket combined), LGA1700 requires a new mounting mechanism for CPU coolers.Noctua is in the process of updating most of their multi-socket CPU cooler models to include LGA1700 mounting hardware. Please see their ‘timeline of Noctua coolers to include LGA1700 mounting hardware’ to check which model will be updated when, and this FAQ for how to verify if your cooler already includes LGA1700 mounting hardware.For coolers that do not yet include LGA1700 mounting hardware, Noctua offers a direct free-of-charge mounting-upgrade kits (NM-i17xx-MP83 for coolers with 83mm mounting pitch and NM-i17xx-MP78 for coolers with 78mm mounting pitch). Please see this FAQ to check which kit is required for your cooler.A proof of purchase of both an eligible Noctua CPU cooler (i.e. DENSITY.sk invoice) and either an LGA1700 CPU or an LGA1700 motherboard is required for ordering the kits free of charge via Noctua's website.More information can be found on Noctua's website HERE.
