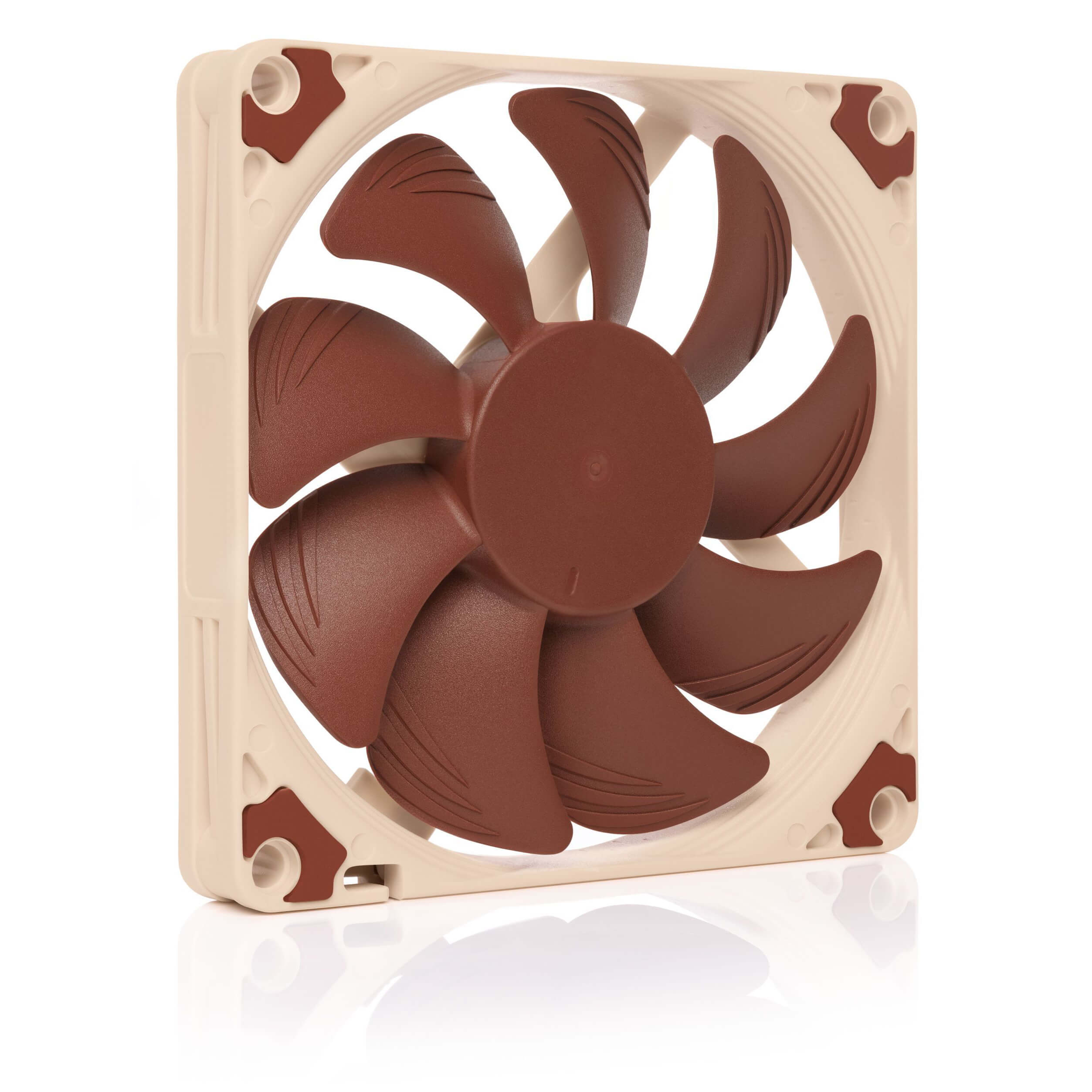

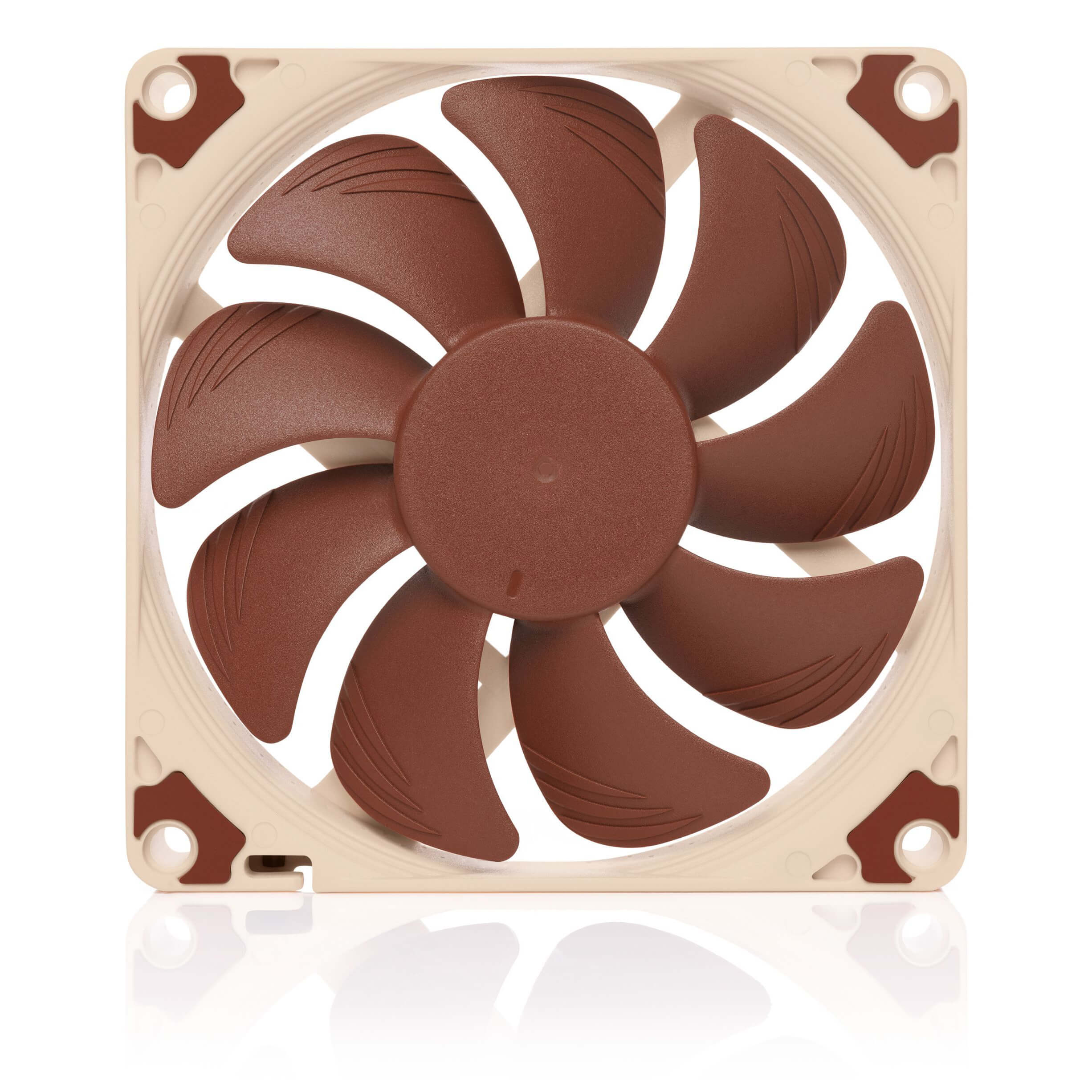

The NF-A9x14 is a premium quality quiet 92mm fan with only 14mm thickness. Thanks to NOCTUA’s design, the NF-A9x14 is a great match for low profile CPU coolers and other space-restricted applications. It offers fully automatic speed control via 4-pin PWM fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control for even more quiet operation.

Package Content:

Low-Noise Adapter (L.N.A.), 4-Pin Y-Cable, 30cm Extension Cable, 4 Vibration-Compensators, 4 Fan Screws

Specifications

Size92x92x14 mm
Connector4-pin PWM
BearingSSO2
Speed (+/- 10%)2200 RPM
Min. speed (PWM, +/-20%)500 RPM
Airflow50,5 m³/h
Acoustical noise19,9 dB(A)
Static pressure1,64 mm H₂O
Max. input power1,32 W
Max. input current0,11 A
Operating voltage12 V
MTTF> 150.000 h

More details can be found on manufacturer’s website.

Weight0.2 kg
Dimensions9.2 × 9.2 × 1.4 cm
