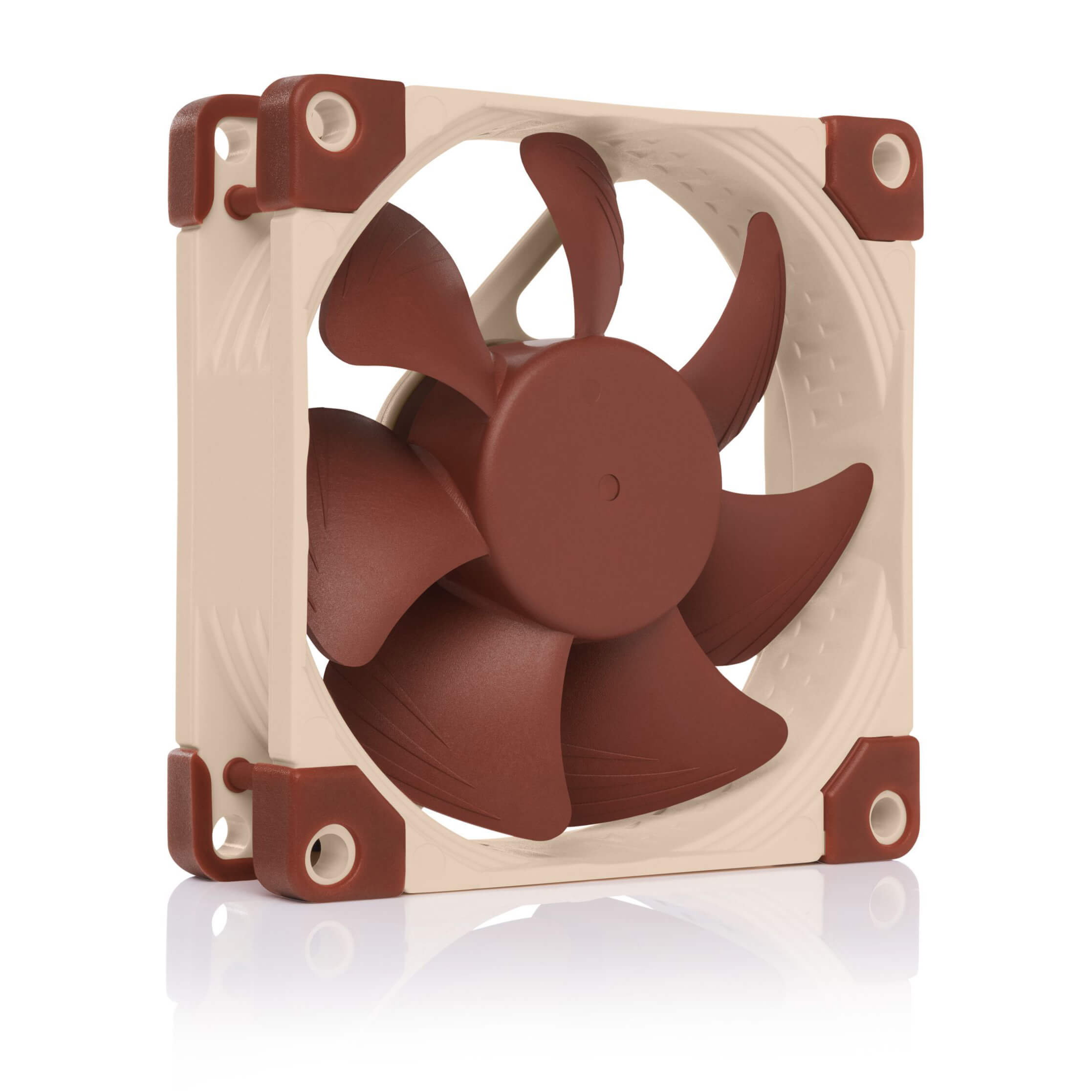

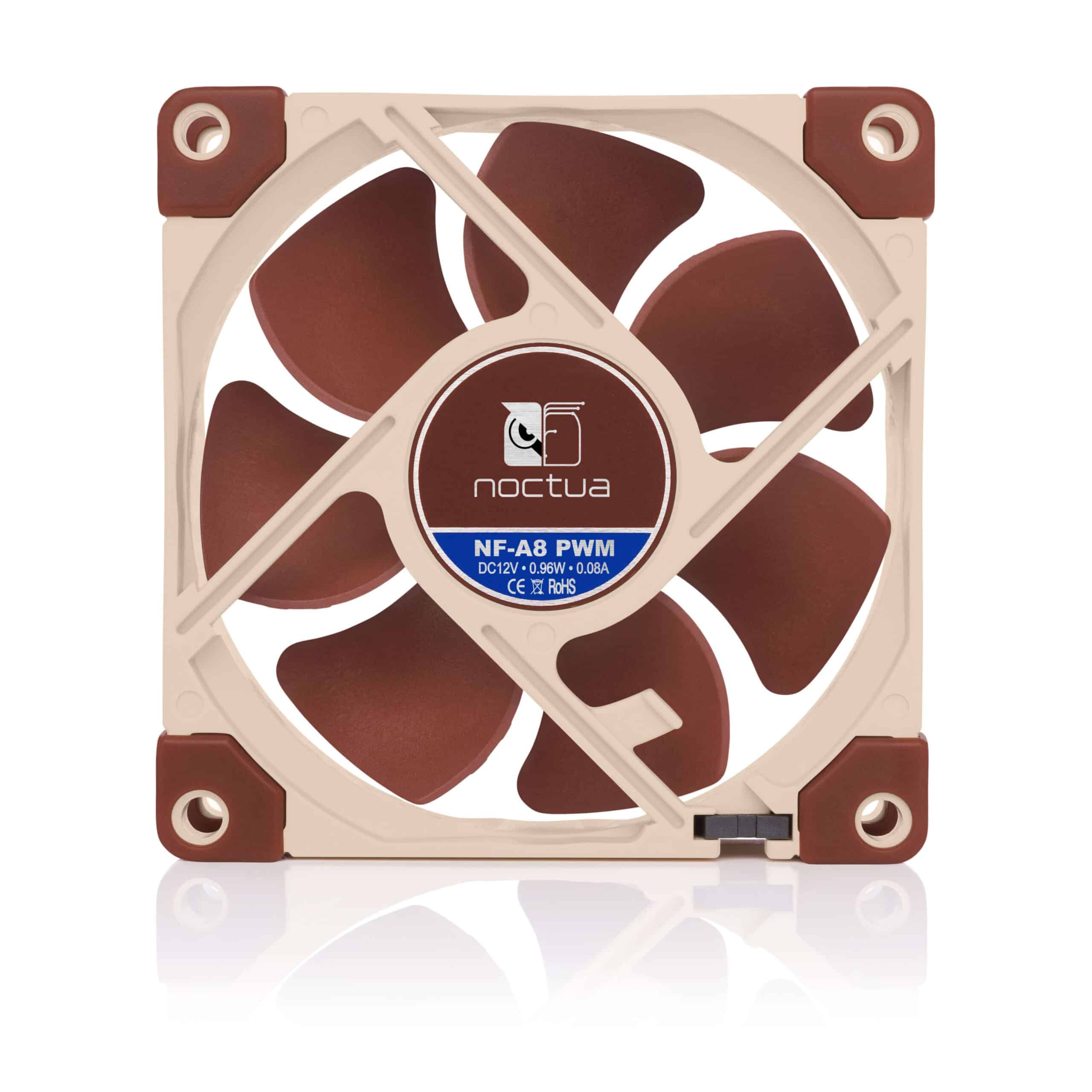

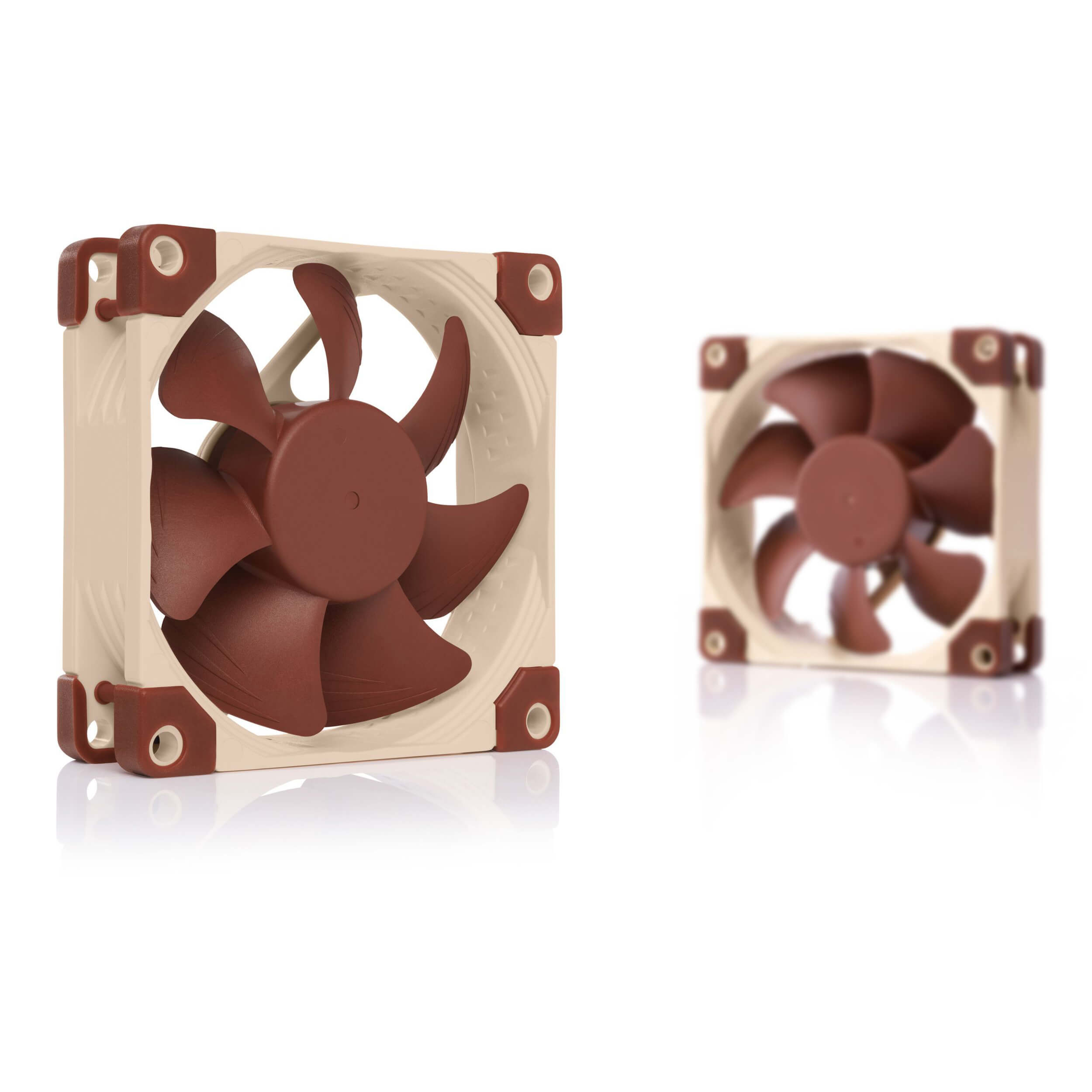

The NF-A8 is a premium quality quiet 80mm fan. Thanks to NOCTUA’s sophisticated aerodynamic design, the NF-A8 further improves the renowned quiet cooling performance of the award-winning NF-R8. The PWM version offers fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 2200 to 1750rpm.

Package Content:

Low-Noise Adapter (L.N.A.), 4-Pin Y-Cable, 30cm Extension Cable, 4 Vibration-Compensators, 4 Fan Screws

Specifications

Size80x80x25 mm
Connector4-pin PWM
BearingSSO2
Speed (+/- 10%)2200 RPM
Min. speed (PWM, +/-20%)450 RPM
Airflow55,5 m³/h
Acoustical noise17,7 dB(A)
Static pressure2,37 mm H₂O
Max. input power0,96 W
Max. input current0,08 A
Operating voltage12 V
MTTF> 150.000 h

More details can be found on manufacturer’s website.

Weight0.22 kg
Dimensions8 × 8 × 2.5 cm
