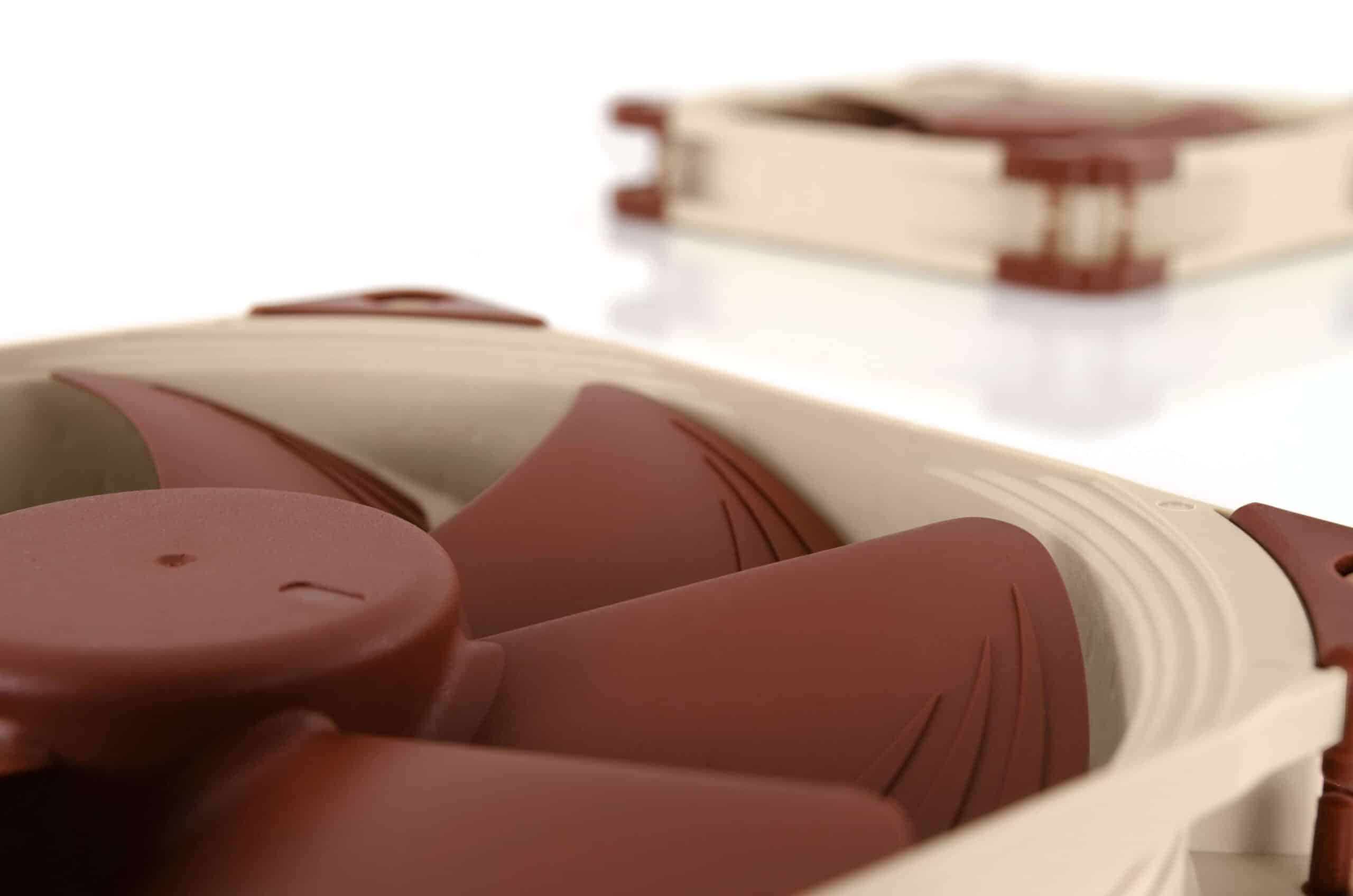

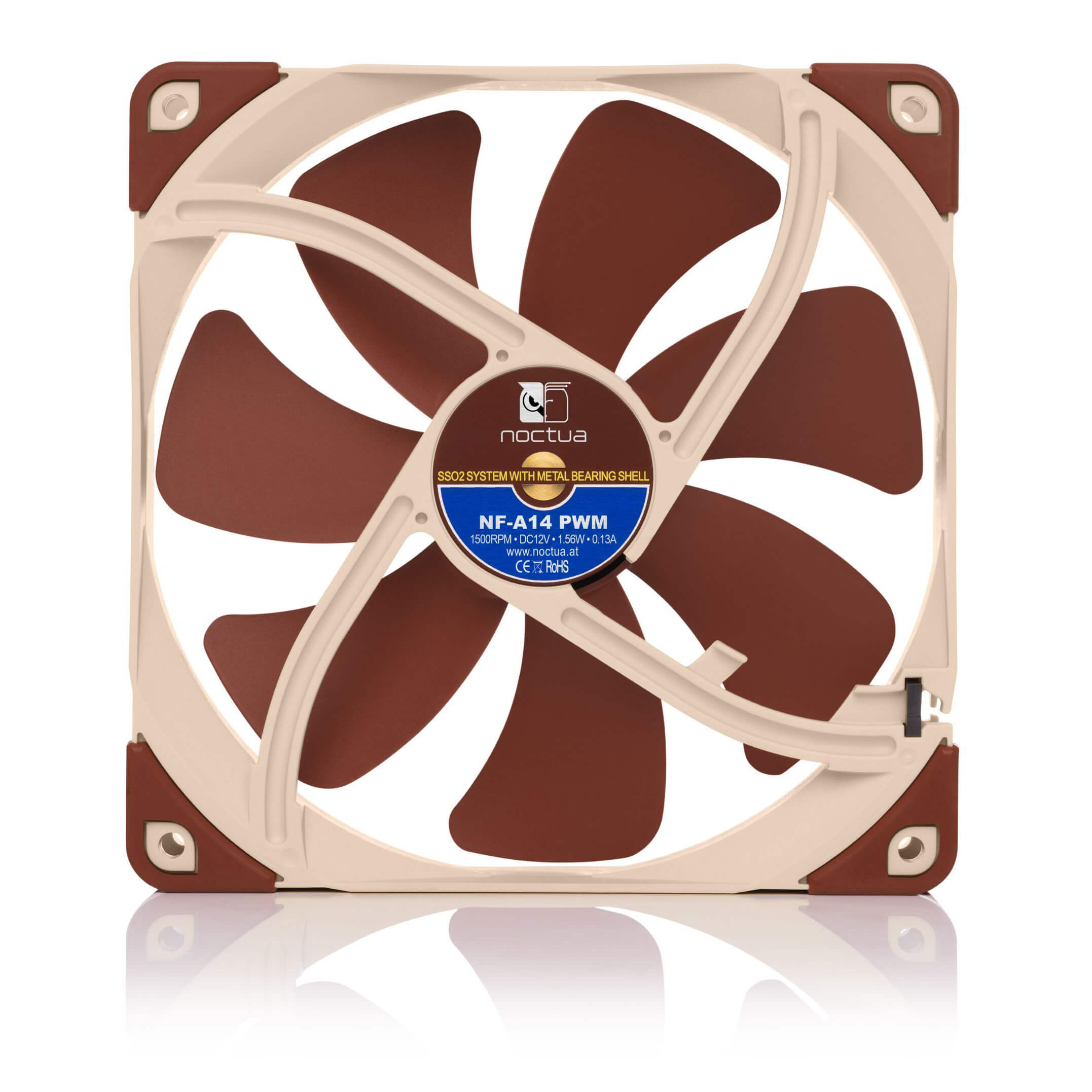

The NF-A14 is a premium high-quality 140mm fan. Its square design allows it to be used on water-cooling radiators or function as high-performance case fans. It improves on its predecessor NF-P14 in its quiet operation and cooling performance. The PWM version comes with a fully automatic speed control via 4-pin fan headers and a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 1500rpm to 1200rpm. It is the best choice for PC builders who need excellent cooling and quiet operation.

Package Content:

Low-Noise Adapter (L.N.A.), 4-Pin Y-Cable, 30cm Extension Cable, 4 Vibration-Compensators, 4 Fan Screws

Specifications

Size140x140x25 mm
Connector4-pin PWM
BearingSSO2
Speed (+/- 10%)1500 RPM
Min. speed (PWM, +/-20%)300 RPM
Airflow140,2 m³/h
Acoustical noise115,5 dB(A)
Static pressure2,08 mm H₂O
Max. input power1,56 W
Max. input current0,13 A
Operating voltage12 V
MTTF> 150.000 h

More details can be found on manufacturer’s website.

Weight0.37 kg
Dimensions14 × 14 × 2.5 cm
